ArtUs ultrasound scanner

ArtUs family scanners

ArtUs is Telemed's very compact and highly powerful application-based ultrasound device. Featured with high-speed USB3.0 interface it allows increase scanning speed without compromising image quality and provides real-time transfer RF ultrasound data to a PC. New "WideView" imaging mode maximizes viewing area for linear, convex and endocavity transducers. Other features includes improved spatial compound available for linear and convex transducers, parallel beamforming, harmonics, B-steer imaging. The system is capable to drive high-density and high-frequency transducers delivering detailed, rich and wide dynamic range images. Software features include Echo Wave II with Speckle noise reduction as a standard package and optional research package: SDK library and advanced data processing and visualisation procedures for MATLAB environment.

ArtUs is available in following modifications:

ArtUs EXT-1H Kit, a beam former module with a single probe connector and power supply;
ArtUs EXT-2H Kit, a beam former module with two probe connectors and power supply (in development);
I/O module (optional), provides up to 6 trigger signals to/from external equipment through additional connectors;
RF module (optional), provides access to beamformed RF data via Telemed's SDK and MATLAB utilities
Strain Elastograpfy mode (optional), provides information on the relative stiffness between one tissue and another.

Hover your mouse over ArtUs EXT-1H image to see 360 degree view.

Hover your mouse over ArtUs EXT-2H image to see 360 degree view.

ArtUs EXT-1H/-2H Kit includes:

ArtUs EXT-1H or ArtUs EXT-2H beamformer
Micro-B to Type-A USB 3.0 cable
100~240 VAC, 50~60 Hz power supply (EN60601-1)
AC power cable
software, assembly and set-up manual, operation manual (supplied on USB memory stick)
ultrasound transducer (optional)
I/O module (optional)
RF module (optional)
Strain Elastography module (optional)

Detailed system specifications and comparison with other systems see here

ArtUs compatible transducers

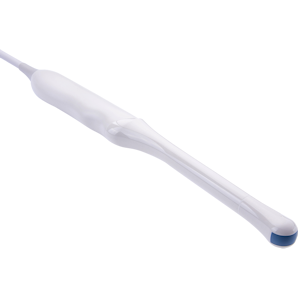

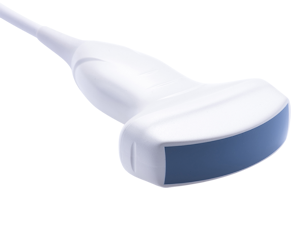

MCV9-5N10-A3
Frequency: 5-9 MHz
Radius: 10mm
Scan depth: 30-150 mm
Use: transrectal, transvaginal

C6-1H50-A5
Frequency: 1-6 MHz
Radius: 50mm
Scan depth: 40-400 mm
Use: abdominal, obstetrics, paediatrics

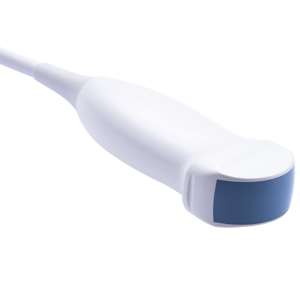

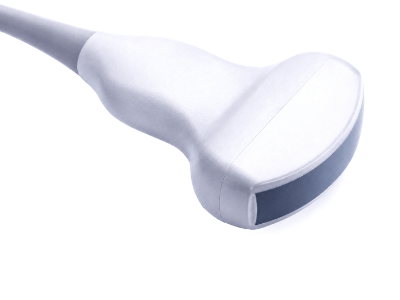

C5-2H60-A5
Frequency: 2-5 MHz
Radius: 60mm
Scan depth: 30-300 mm
Use: abdominal, obstetrics, paediatrics

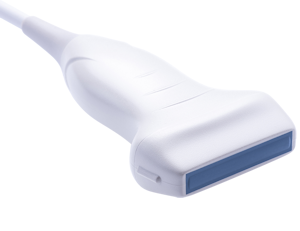

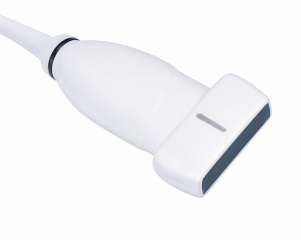

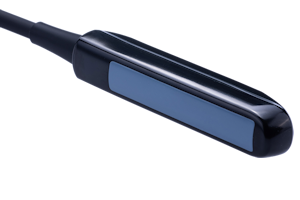

L12-5N40-A4
Frequency: 5-12 MHz
Scan width: 38.4mm
Scan depth: 20-120 mm
Use: paediatrics, small parts, vascular, veterinary

L15-7H40-A5
Frequency: 7-15 MHz
Scan width: 38.4mm
Scan depth: 20-100 mm
Use: paediatrics, small parts, vascular, veterinary

L18-7H30-A5
Frequency: 7-18 MHz
Scan width: 29.95mm
Scan depth: 20-100 mm
Use: paediatrics, small parts, vascular

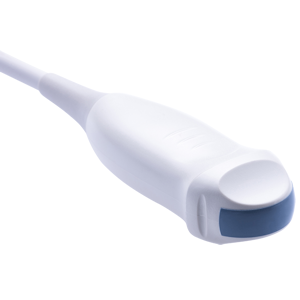

P5-1S15-A6
Frequency: 1-5 Mhz
Scan depth: 50-300 mm
Use: cardiac, abdominal

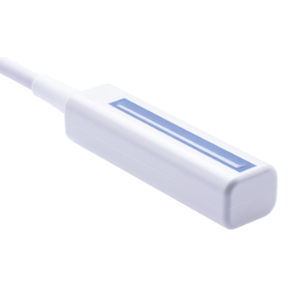

LF9-5N60-A3
Frequency: 5-9 MHz
Scan width: 64mm
Scan depth: 20-150 mm
Use: muscle movement studies

Click image to watch video

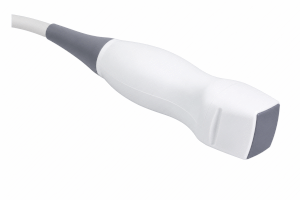

LF11-5H60-A3
Frequency: 5-11 MHz
Scan width: 54.6mm
Scan depth: 20-120 mm
Use: muscle movement studies.

ProbeFix Dynamic T is specifically designed to support the linear array Telemed probe with the larger field of view (6 cm). This T-version is suitable for clinical and research musculoskeletal applications. Additionally, this probe fixation tool offers a greater degree of freedom and offers the possibility to attach visual markers to enable optical tracking of the device in space. The silicone feet can be exchanged easily to make the tool fit different body types.

ProbeFix Dynamic T, compatible with ArtUs LF series transducers.
See full size PDF here.

Simultaneous scanning with two transducers

How it works?

If two identical transducers are connected to the ArtUs EXT-2H scanner, Echo Wave II software will prompt you to choose one of three options:

1-st transducer scanning (live ultrasound stream coming from 1-st port)
2-nd transducer scanning (live ultrasound stream coming from 2-nd port)
dual-scan mode (simultaneous scanning of two transducers, two live streams - each stream comes from its own transducer)

FPS performance examples, configuration:

ArtUs EXT-2H scanner
LF9-5N60-A3 transducer x 2 pcs
Parallel beamforming mode

40 mm scan depth, results

Single stream: 157 fps
Dual stream: 78 fps each stream
(ViewArea 100%)

Single stream: 192 fps
Dual stream: 96 fps each stream
(ViewArea 80%)

Single stream: 250 fps
Dual stream: 125 fps each stream
(ViewArea 60%)

30 mm scan depth, results

Single stream: 180 fps
Dual stream: 90 fps each stream
(ViewArea 100%)

Single stream: 221 fps
Dual stream: 110 fps each stream
(ViewArea 80%)

Single stream: 286 fps
Dual stream: 143 fps each stream
(ViewArea 60%)

20 mm scan depth, results:

Single stream: 210 fps
Dual stream: 105 fps each stream
(ViewArea 100%)

Single stream: 260 fps
Dual stream: 130 fps each stream
(ViewArea 80%)

Single stream: 338 fps
Dual stream: 169 fps each stream
(ViewArea 60%)

Input / Output synchronisation (optional feature)

Ultrasound research may require the synchronization of ultrasound machines and other equipment. Telemed developed optional modules to equip ArtUs EXT-1H/2H beamformer with such feature. Signals description:

Ultrasound Line output - at the falling edge system starts acquiring ultrasound data from tissue for one ultrasound line
Ultrasound Frame output - at the falling edge system starts acquiring ultrasound data from tissue for one ultrasound frame
Ultrasound Line input - system starts acquiring ultrasound data from tissue for one ultrasound line approximately in 20 us after the rising edge of the signal
Ultrasound Frame input - system starts acquiring ultrasound data from tissue for one ultrasound frame approximately in 20 us after rising edge of the signal
ScanStart output - system generates logic level "0" in Freeze mode and logic level "1" in scan mode
ScanStart input - system starts scan (from new frame) when logic level "1" and stops scan when logic level "0"

See more details here.

Strain Elastography mode (optional feature)

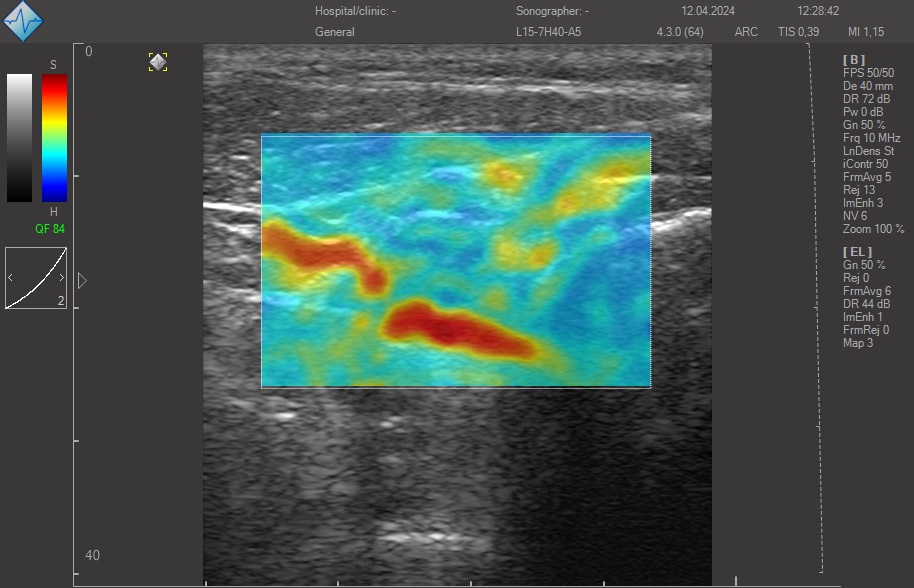

TELEMED scanner Artus optionally could be equipped with real-time strain elastography imaging mode. The elastography mode is useful for the assessment of tissue strain which correlates with the stiffness of tissue. Strain elastography is informative for the diagnostics of breast masses, thyroid pathologies, and other applications. The mode is supported by implemented specific measurements such as strain ratio, histogram analysis, E/B ratio, and quality indicator for obtaining reliable images for the measurements.
Dedicated for research purposes.

Access to beamformer RF data (optional feature)

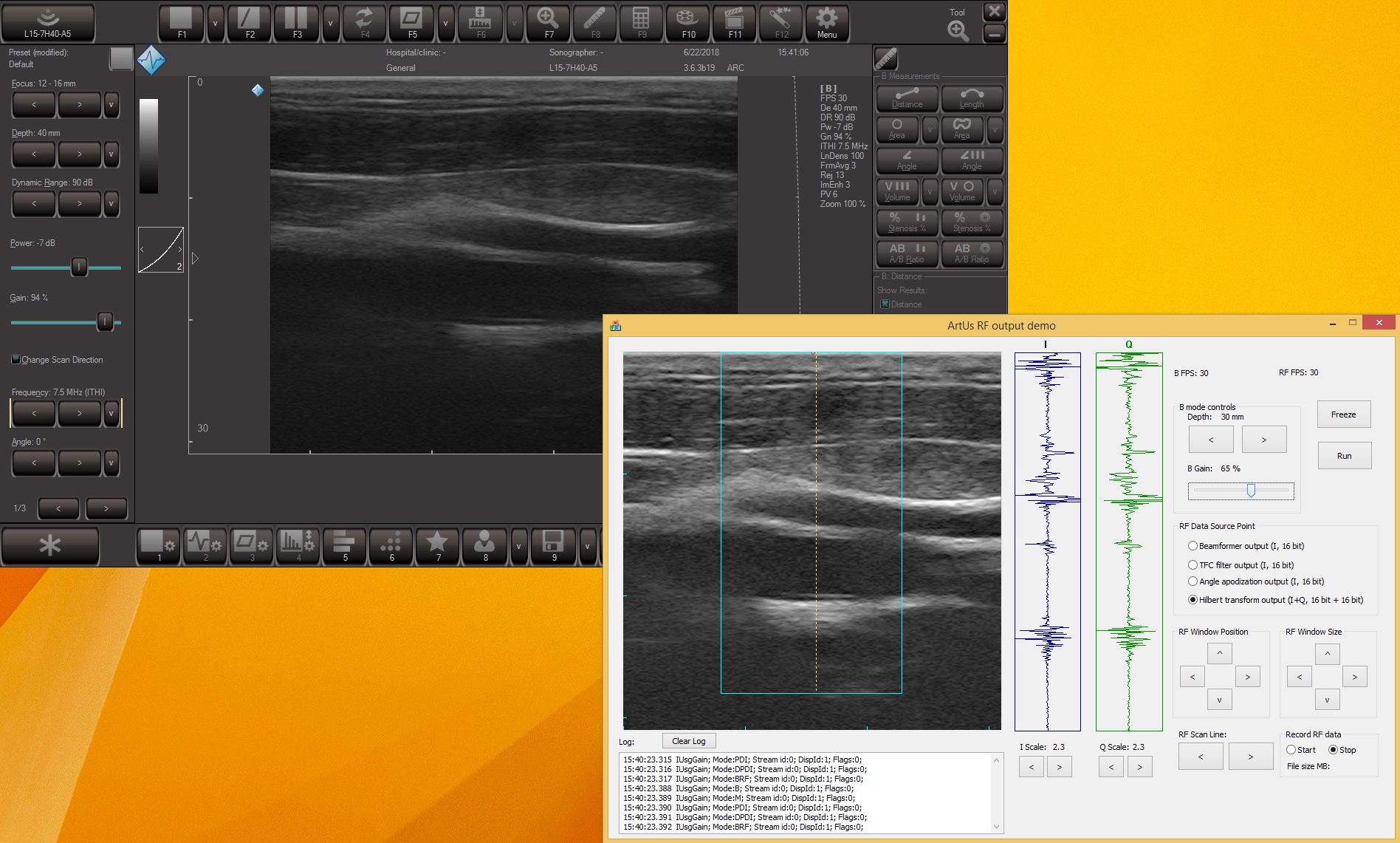

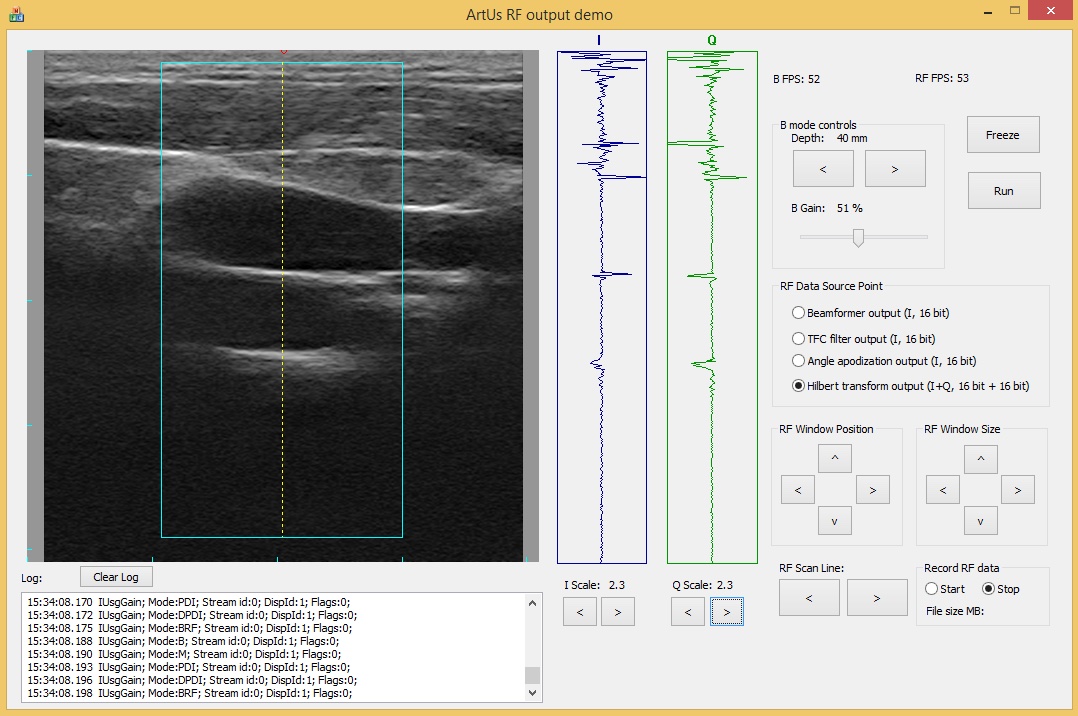

Majority of the commercial ultrasound machines are closed for the researchers and do not provide access to raw RF signals. These signals carry valuable information about acoustic wave and tissue interactions and it could be employed fo the developments of new diagnostic methods. TELEMED offers research tools for scientific engineers working in biomedical ultrasound field which allows to analyze beamformer RF data acquired by the TELEMED ultrasound scanners ArtUs EXT-1H or ArtUs EXT-2H.
See more details here.

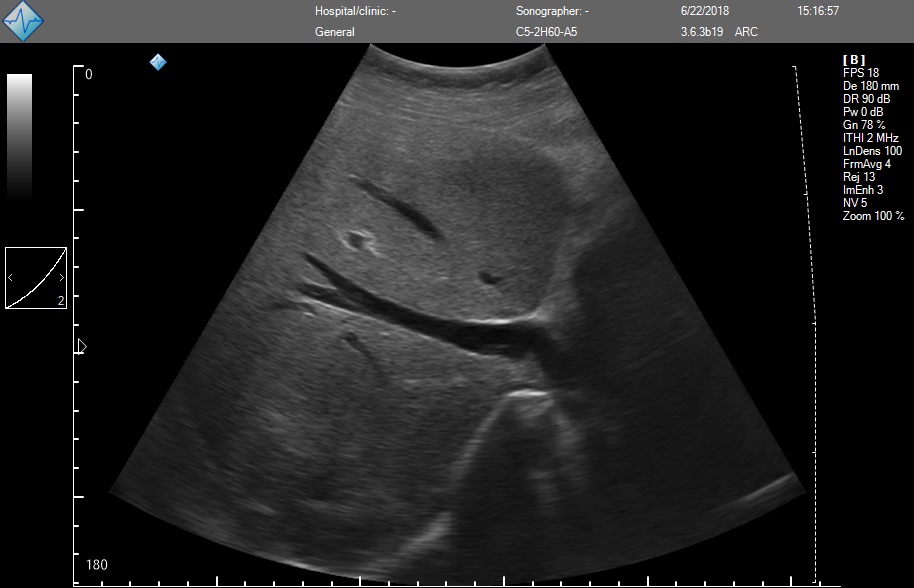

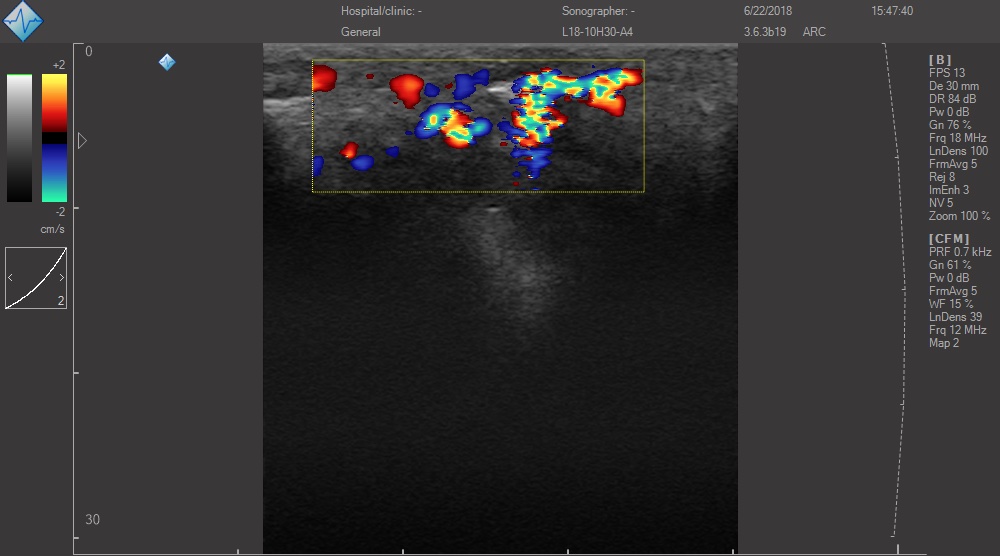

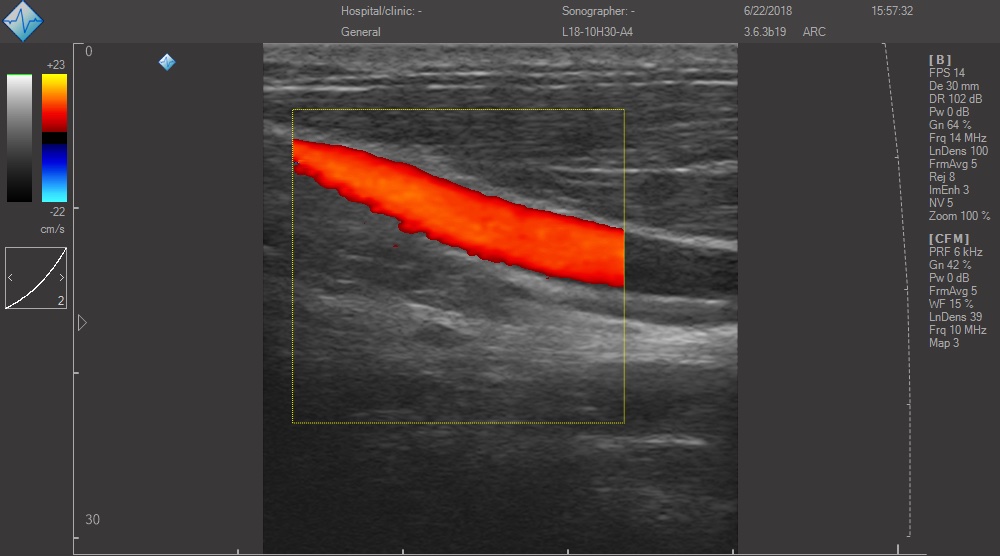

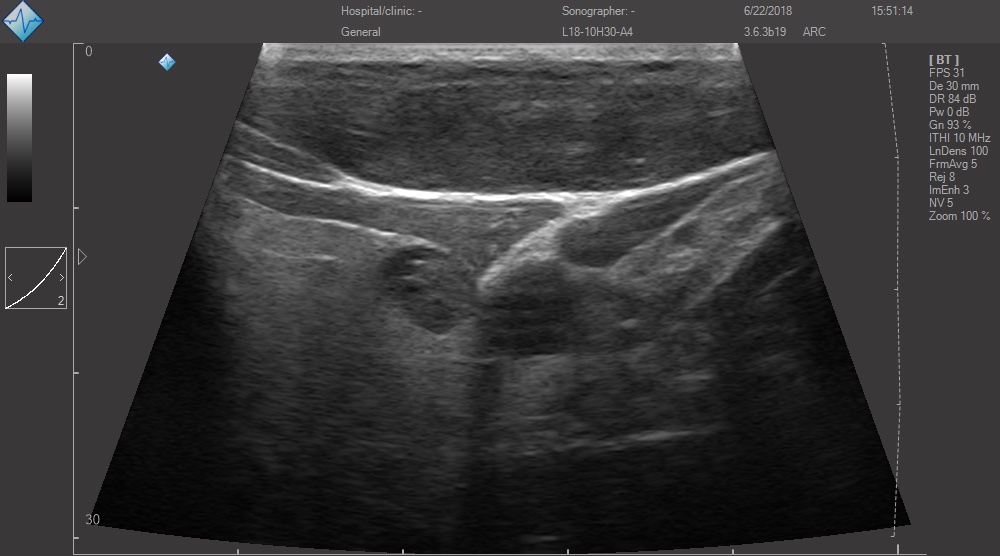

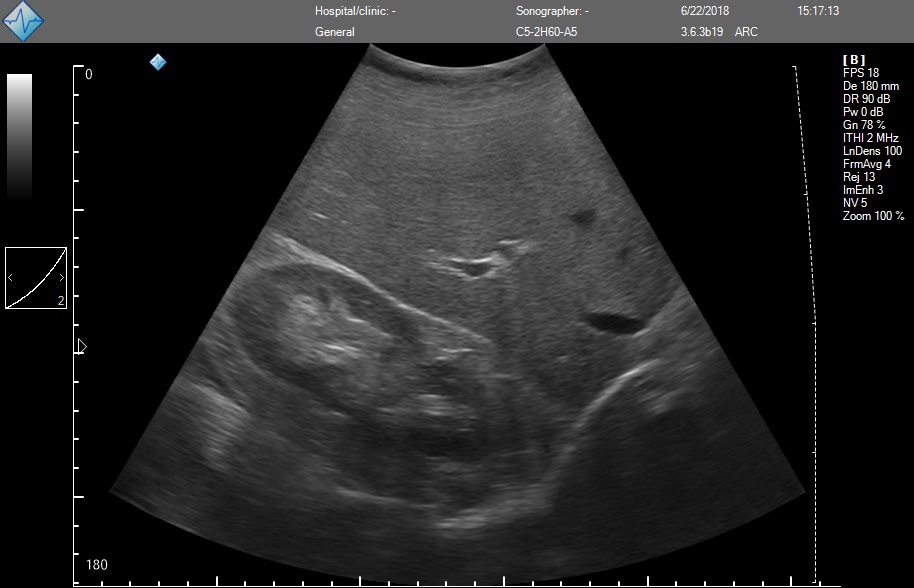

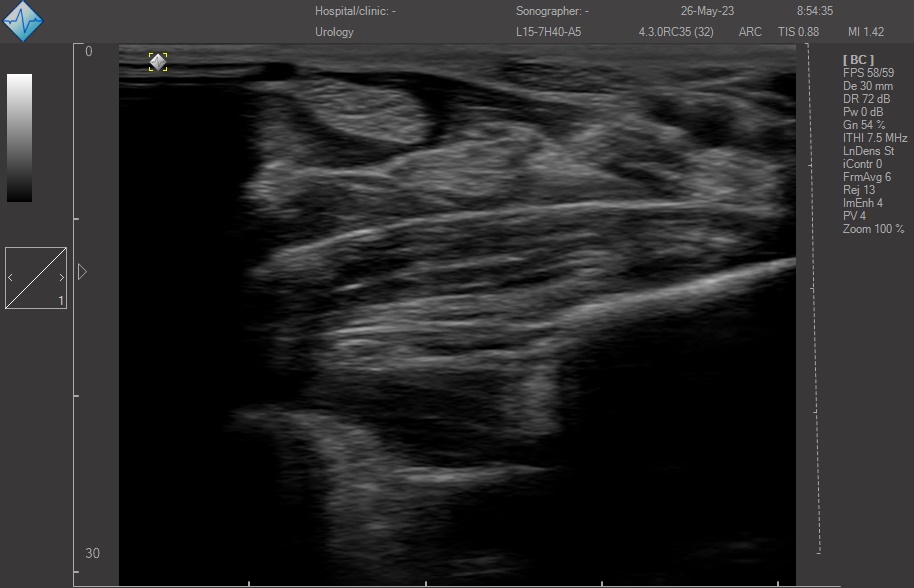

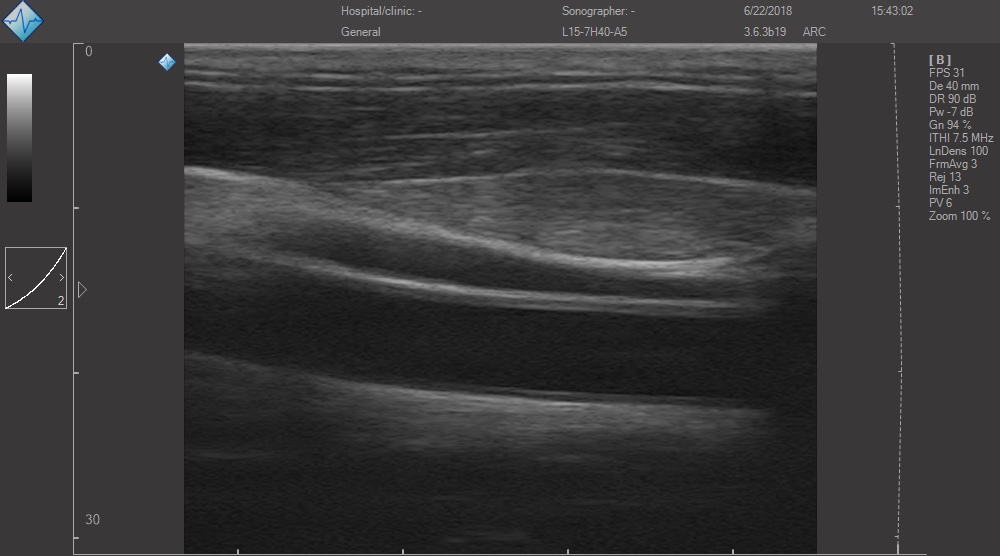

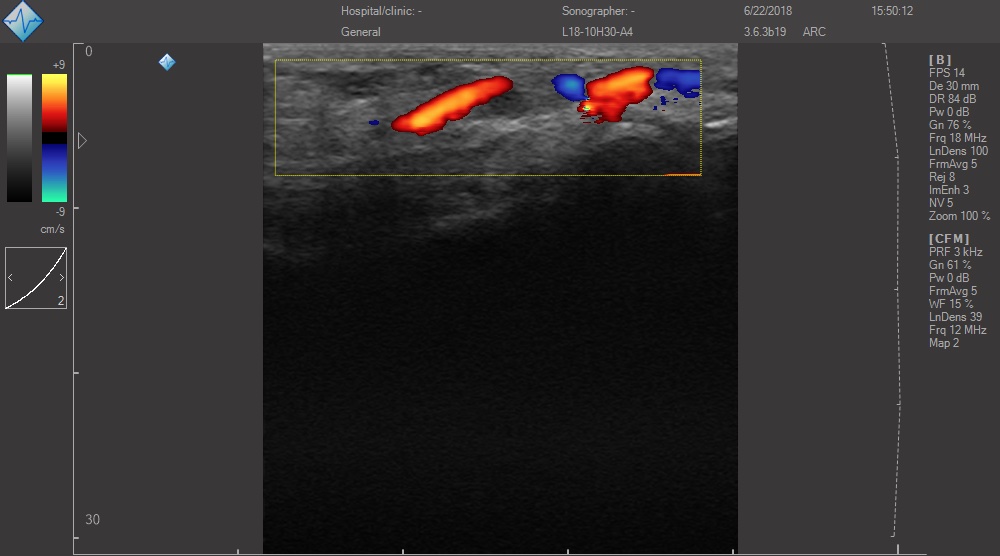

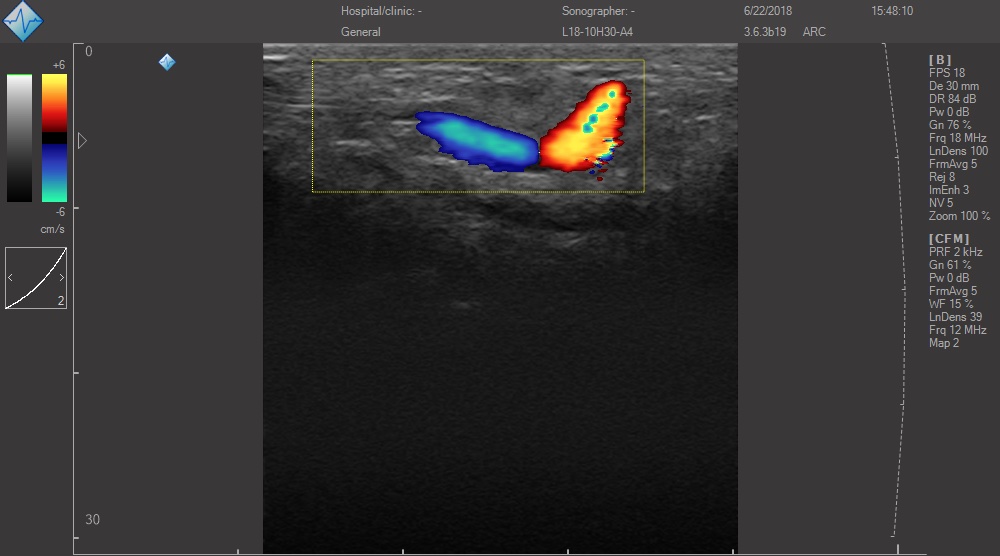

Ultrasound images

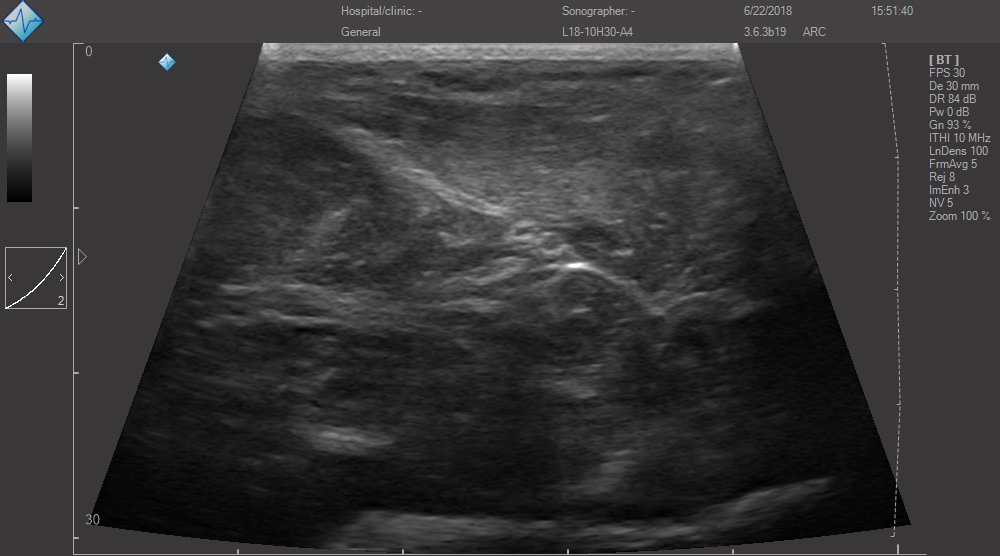

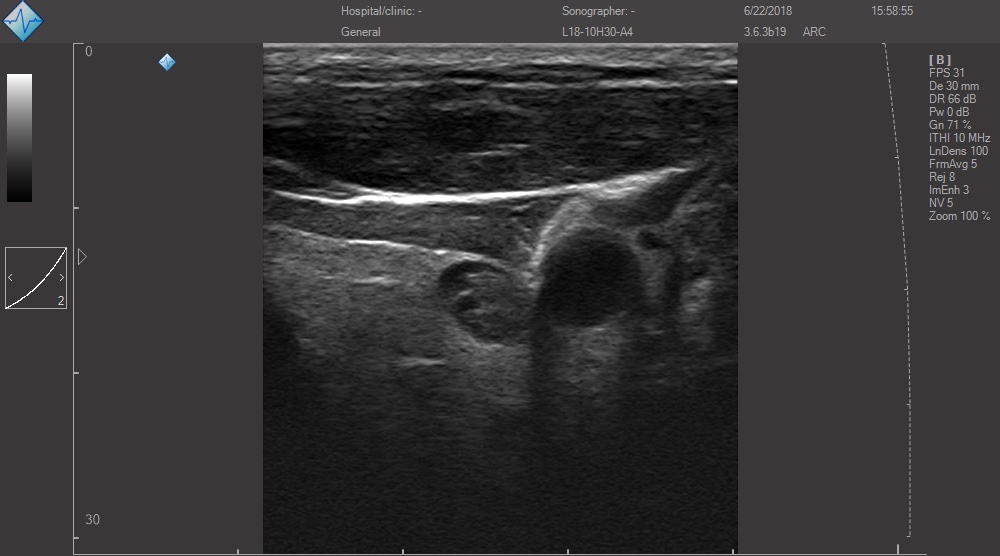

More ArtUs ultrasound video/images you can see here.
