Current product

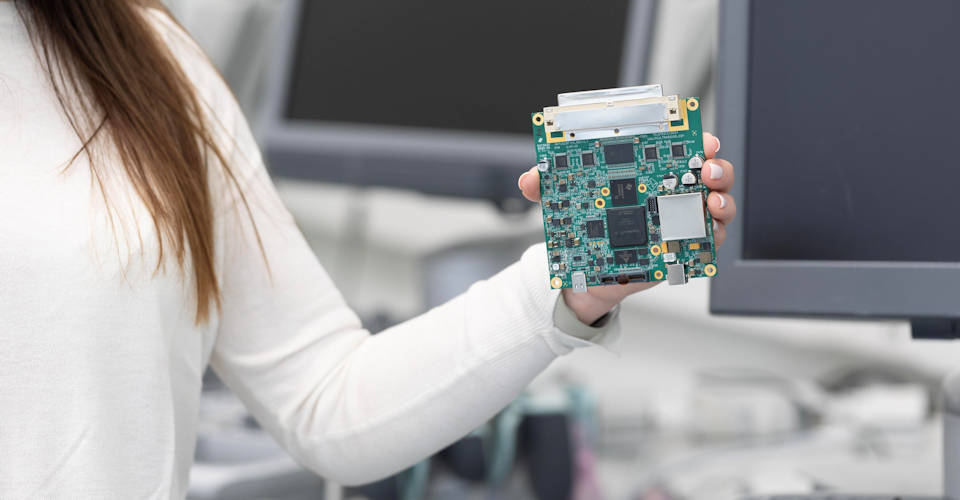

ArtUs COEM-1H
Compact OEM beamformer board
The ArtUs color Doppler engine on one compact board: 103 × 100 × 13 mm and 0.2 kg, powered directly from USB Type-C. Built for handheld and portable devices.
- USB 3.0, Type-C
- Color Doppler
- Strain elastography (option)
- RF data (option)
- USB powered
- Interface
- USB 3.0, Type-C
- Connector
- H-280
- Frequency
- 1.5–18 MHz
- Ports
- 1
- Power
- USB Type-C or +5 V, 2 A
- Size
- 103.3 × 99.5 × 12.8 mm, 0.2 kg
360° view
Drag or move the pointer to rotateSpecifications
Imaging modes
- B, B+B, 4B
- B+M, M
- B-steer
- Compound for linear and convex transducers
- Virtual convex for linear transducers
- Expanded view angle for convex transducers
- CFM (Color Doppler)
- PD (Power Doppler)
- DPDI (Directional Power Doppler)
- PW (Pulsed Wave Doppler)
- B+PW (Duplex)
- B+CFM/PD/DPDI+PW (Triplex)
- THI (Tissue Harmonic Imaging)
- Strain elastography (option)
- RF data access through the SDK (option)
Transducers
- H-280 type transducer connector
- Microconvex, convex, linear and phased array transducers
- Multifrequency transducers, 1.5–18 MHz
- 1 transducer port
Power
- Directly from the USB Type-C port
- or an external +5 V (2 A) power supply
Dimensions and weight
| Model | Dimensions | Weight |
|---|---|---|
| ArtUs COEM-1H, rev. A | 103.33 × 99.5 × 12.8 mm | 0.2 kg |
Drawings and 3D models
Mechanical drawings and CAD files for integration into your device.
ArtUs COEM-1H, rev. A
Integration
TELEMED SDK
Control the beamformer from your own software on Windows with the Usgfw2 SDK — samples and source code included.
Echo Wave II
Start evaluating right away with our Echo Wave II software before your own application is ready.
Research and RF data
Optional real-time RF data, with ready-made research tools for C++, MATLAB, Python and LabVIEW.
