LS128 OEM-1Z/2Z/3Z
128-channel color Doppler OEM beamformers

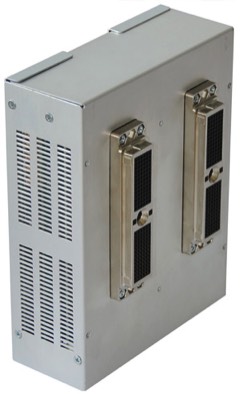

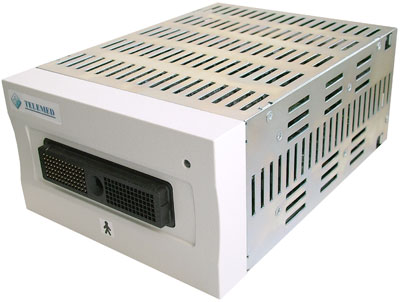

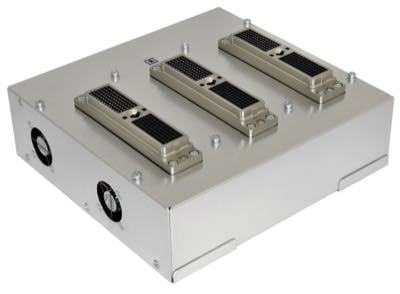

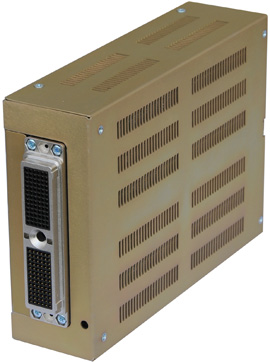

128-channel color Doppler beamformers with up to three transducer ports, in OEM and integrated (INT) versions, from an earlier TELEMED generation.
- USB 2.0
- Up to 3 ports
- Color Doppler
- HPRF
- THI
- Interface
- USB 2.0, Type-B
- Connector
- ZIF-156
- Frequency
- 2–14 MHz
- Ports
- 1, 2 or 3
- Power
- +12 V ±5 %, 2.5 A
- Weight
- 1–2.5 kg
Specifications
Imaging modes
- B, B+B, 4B
- B+M, M
- B-steer
- Compound and trapezoid
- CFM (Color Doppler)
- PD (Power Doppler)
- DPDI (Directional Power Doppler)
- PW (Pulsed Wave Doppler)
- B+PWD (Duplex)
- B+CFM/PD/DPDI+PWD (Triplex)
- HPRF (High Pulse Repetition Frequency)
- THI (Tissue Harmonic Imaging), with 3.5 MHz central-frequency transducers
Transducers
- ZIF-156 type transducer connector
- Multifrequency transducers, 2–14 MHz
- OEM-1Z and INT-1Z: 1 port · OEM-2Z and INT-2Z: 2 ports · OEM-3Z: 3 ports
Power
- +12 V ±5 %, 2.5 A
Dimensions and weight
| Model | Dimensions | Weight |
|---|---|---|

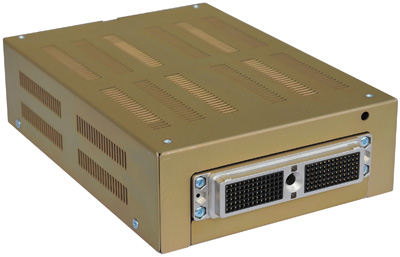

| LS128 OEM-1Z | 146 × 200 × 55 mm | 1 kg |

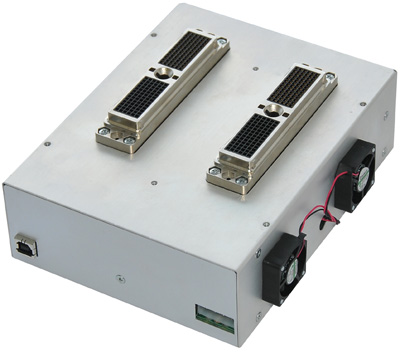

| LS128 OEM-2Z | 146 × 190 × 70 mm | 1.5 kg |

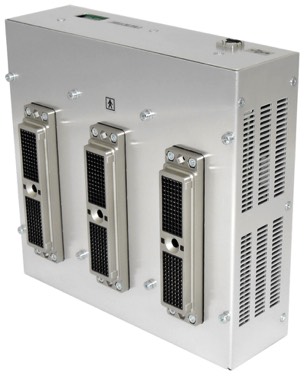

| LS128 OEM-3Z | 146 × 190 × 70 mm | 2 kg |
| LS128 INT-1Z | 146 × 210 × 84 mm | 2 kg |

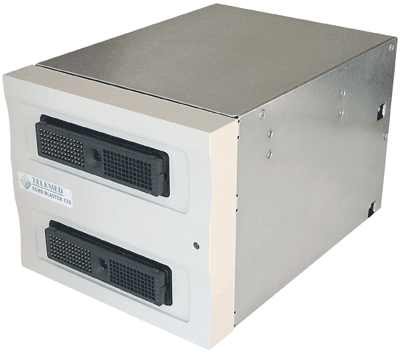

| LS128 INT-2Z | 146 × 215 × 127 mm | 2.5 kg |
Integration
TELEMED SDK
Control the beamformer from your own software on Windows with the Usgfw2 SDK — samples and source code included.
Echo Wave II
Start evaluating right away with our Echo Wave II software before your own application is ready.
Long-term supply
We support OEM partners through the whole product lifecycle. Ask us about availability and replacement options.
