Echo Blaster 128 OEM-1Z
128-channel B/M-mode OEM beamformers
128-channel beamformers for B and M mode imaging, in OEM and integrated (INT) versions, from an earlier TELEMED generation.
- USB 2.0
- B and M mode
- 1 or 2 ports
- Interface
- USB 2.0, Type-B
- Connector
- ZIF-156
- Frequency
- 2–12 MHz
- Ports
- 1 or 2
- Power
- +12 V ±5 %, 2.5 A
- Weight
- 1–2.5 kg
Specifications
Imaging modes
- B, B+B, 4B
- B+M, M
Transducers
- ZIF-156 type transducer connector
- Multifrequency transducers, 2–12 MHz
- OEM-1Z and INT-1Z: 1 port · INT-2Z: 2 ports
Power
- +12 V ±5 %, 2.5 A
Dimensions and weight
| Model | Dimensions | Weight |
|---|---|---|

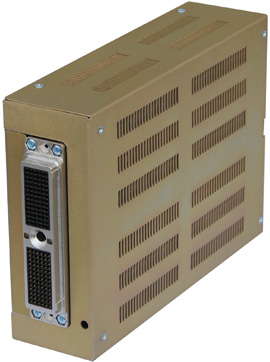

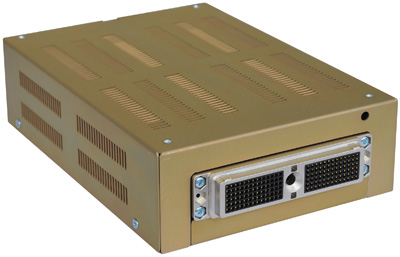

| Echo Blaster 128 OEM-1Z | 146 × 200 × 55 mm | 1 kg |

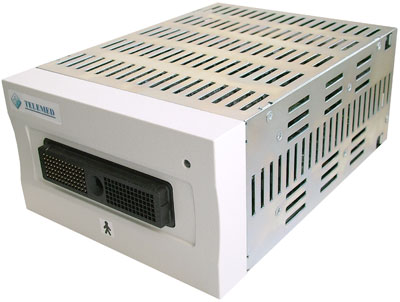

| Echo Blaster 128 INT-1Z | 146 × 210 × 84 mm | 2 kg |

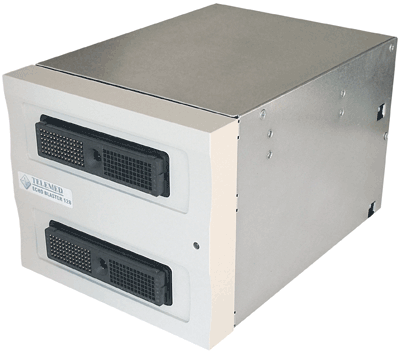

| Echo Blaster 128 INT-2Z | 146 × 215 × 217 mm | 2.5 kg |
Integration
TELEMED SDK
Control the beamformer from your own software on Windows with the Usgfw2 SDK — samples and source code included.
Echo Wave II
Start evaluating right away with our Echo Wave II software before your own application is ready.
Long-term supply
We support OEM partners through the whole product lifecycle. Ask us about availability and replacement options.
